FastInterpolations.jl

A high-performance N-dimensional interpolation package for Julia, optimized for zero-allocation hot loops.

Key Strengths

🚀 Fast: Optimized algorithms that outperform other packages.
✅ Zero-Allocation: No GC pressure on hot loops.
🎯 Explicit BCs: Support custom physical boundary conditions.
📐 Analytic Derivatives & Integration: Analytical differential operators (gradient, hessian, etc.) and exact spline integration.
🌌 Generic: Supports Complex values and AD (AutoDiff) — ForwardDiff, Zygote, Enzyme.
🧵 Thread-Safe: Lock-free concurrent access across multiple threads.

Supported Methods

FastInterpolations.jl supports four interpolation methods: Constant, Linear, Quadratic, and Cubic splines.

Method	Continuity	Best For
`constant_interp`	C⁻¹	Step functions
`linear_interp`	C⁰	Fast, lightweight, no overshoot
`quadratic_interp`	C¹	Smooth derivatives at low cost
`cubic_interp`	C²	High-accuracy splines

Quick Start

FastInterpolations.jl provides two primary API styles, plus a specialized SeriesInterpolant for multi-series data.

1. One-shot API (Dynamic Data)

Best when y values change every step, but the grid x remains fixed.

using FastInterpolations

# Define grid and query points
x = range(0.0, 10.0, 100)   # source grid (100 points)
y = sin.(x)                 # initial y data

# Basic usage
cubic_interp(x, y, 0.33) # return interpolated value at x=0.33
cubic_interp(x, y, [0.11, 0.22, 0.33]) # return values at x=[0.11,0.22,0.33]

# Advanced usage (in-place vector query)
xq = range(0.0, 10.0, 500)  # query points  (500 points)
out = similar(xq)           # pre-allocate output buffer

for t in 1:1000
    @. y = sin(x + 0.01t)           # y values evolve each timestep
    cubic_interp!(out, x, y, xq)    # zero-allocation ✅ (after warm-up)
end

2. Interpolant API (Static Data)

Best for fixed lookup tables where both x and y are constant.

itp = cubic_interp(x, y)       # pre-compute spline coefficients once

result = itp(5.5)              # evaluate at single point
result = itp(xq)               # evaluate at multiple points
@. result = a * itp(xq) + b    # seamless broadcast fusion

2.1 SeriesInterpolant (Multiple Series)

When multiple y-series share the same x-grid, use SeriesInterpolant. It leverages SIMD and cache locality for >10× faster evaluation compared to looping over individual interpolants.

x = range(0, 10, 100)
y1, y2, y3, y4 = sin.(x), cos.(x), tan.(x), exp.(-x)  # 4 series, same grid

sitp = cubic_interp(x, [y1, y2, y3, y4])   # create SeriesInterpolant
sitp(0.5)  # → 4-element Vector: [≈sin(0.5), ≈cos(0.5), ≈tan(0.5), ≈exp(-0.5)]

For detailed usage and performance trade-offs, see the API Selection Guide.

Multi-Dimensional Interpolation

FastInterpolations.jl supports 2D, 3D, and N-dimensional interpolation on any rectilinear grid (uniform or non-uniform). The API generalizes the 1D case by packing axis-specific information into Tuples — for example, where 1D takes x, ND takes (x, y, z, ...) for the grid, query points, and parameters. See the ND Interpolation Guide for details.

using FastInterpolations

# Define 2D rectilinear grid (can be non-uniform) and data
x, y = [0.0, 0.2, 0.5, 1.0], range(0, 2π, 50)
data2D = [sin(xi) * cos(yi) for xi in x, yi in y]
xq, yq = [0.1, 0.2], [0.3, 0.4] # query vectors

# 1. One-shot API: (grid_tuple, data, query_tuple)
val  = cubic_interp((x, y), data2D, (0.5, 0.3)) # single point
vals = cubic_interp((x, y), data2D, (xq, yq))   # vector query

# 2. Interpolant API: Precompute coefficients once
itp = cubic_interp((x, y), data2D)
itp((0.5, 0.3)) # scalar query
itp((xq, yq)) # vector query

Key Features:

Flexible Grids: Supports both uniform and non-uniform rectilinear grids.
Full Parity: Every 1D feature (BCs, derivatives, extrapolation) works in ND via Tuples.
Zero-Allocation: Optimized tensor-product evaluation for high-performance loops.

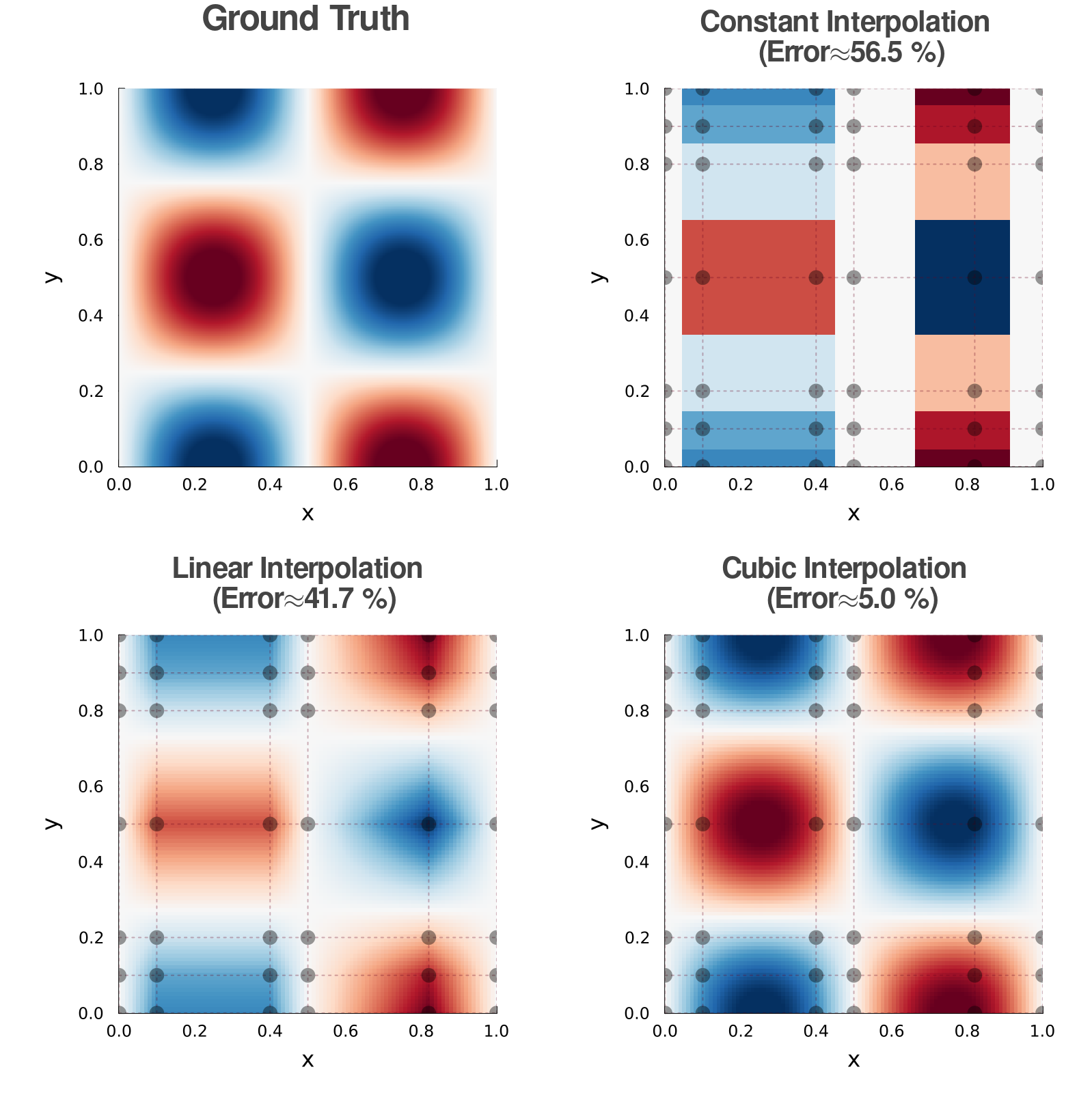

2D Visualization Example

Comparison on a non-uniform 2D rectilinear grid for $f(x, y) = \sin(2\pi x) \cos(2\pi y)$. Cubic interpolation maintains high accuracy and captures extrema even on coarse, non-uniform grids. The gray dots in the image below represent the given node points (6x7 grid), and the dashed lines illustrate the grid structure. 2D Interpolation Example

Performance

Benchmark comparison against Interpolations.jl, DataInterpolations.jl, and Dierckx.jl for cubic spline interpolation.

Env: Local · macOS 15.7.3 · Apple M1 Pro · Julia 1.12.5<br> Pkg: FastInterpolations (v0.3.0) · Interpolations (v0.16.2) · DataInterpolations (v8.9.0) · Dierckx (v0.5.4)

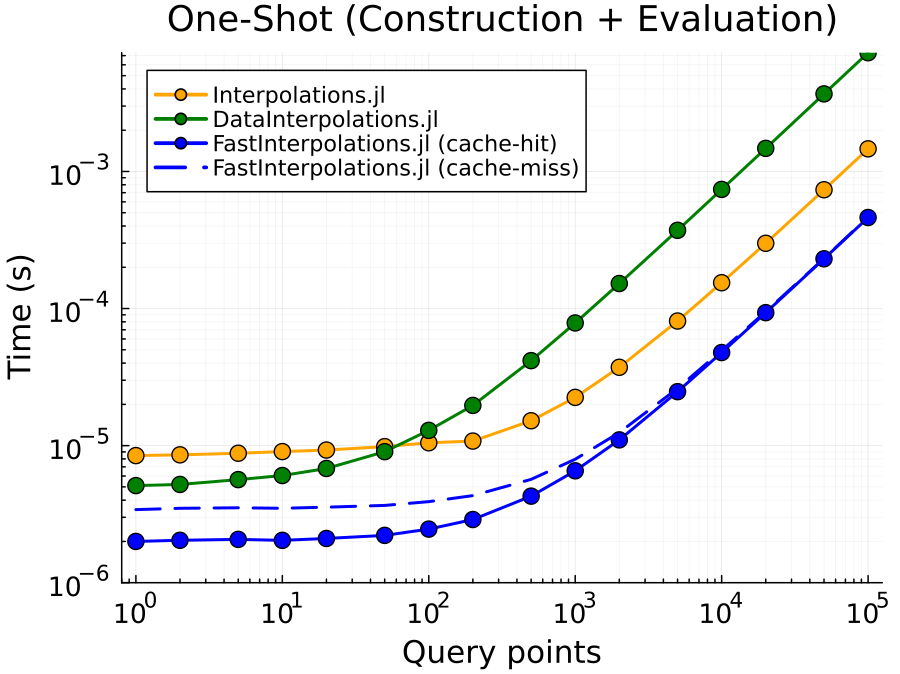

One-Shot

Speedup: (2.2 ~ 15.0)× vs Interpolations.jl · (8.6 ~ 22.7)× vs DataInterpolations.jl · (14.4 ~ 18.7)× vs Dierckx.jl

One-shot (construction + evaluation) time per call with fixed grid size $n=100$. FastInterpolations.jl is significantly faster even on the first call (cache-miss), and becomes even faster on subsequent calls (cache-hit).

More Features

Analytic Derivatives

Exact 1st–3rd order derivatives from spline coefficients — no finite differences. ND interpolants support gradient, hessian, and laplacian.

# 1D example
cubic_interp(x, y, 5.0; deriv=DerivOp(1))   # 1D: f'(x)

# 2D example
itp2d = cubic_interp((x, y), data2D)

point = (0.5, 1.0)                       # query point (x, y)
itp2d(point; deriv=DerivOp(1, 0))        # ∂f/∂x
itp2d(point; deriv=DerivOp(1, 1))        # ∂²f/∂x∂y (mixed partial)
gradient(itp2d, point)                   # (∂f/∂x, ∂f/∂y)
hessian(itp2d, point)                    # 2×2 Hessian matrix

→ 1D Derivatives · ND Derivatives

Analytic Integration

Exact definite integration from spline coefficients — no numerical quadrature.

itp = cubic_interp(x, y)
integrate(itp, 0.0, π)                       # 1D: ∫₀^π f(x) dx

itp2d = cubic_interp((x, y), data2D)
integrate(itp2d, (0.0, 0.0), (1.0, 1.0))    # 2D: ∫∫ f dA over [0,1]²
integrate(itp2d)                              # 2D: full-domain integral

→ 1D Integration · ND Integration

Boundary Conditions

Rich type system for physical BCs — natural, periodic, and custom per-endpoint derivatives.

cubic_interp(x, y, xq; bc=ZeroCurvBC())   # natural spline (S''=0)
cubic_interp(x, y, xq; bc=PeriodicBC())   # C²-continuous periodic

→ Boundary Conditions Guide

Extrapolation, Search & More

Factory functions provide a single discoverable entry point for all configuration.

cubic_interp(x, y, xq; extrap=Extrap(:constant))  # :constant | :extend | :wrap
linear_interp(x, y, xq; search=Search(:binary))    # :binary | :linear_binary | :auto
constant_interp(x, y, xq; side=Side(:nearest))     # :nearest | :left | :right

→ Extrapolation · Search Policies · Factory Functions

See also: Complex Numbers · AutoDiff · Thread Safety · Optim.jl Integration
